Flexible layout configurations with 32% footprint reduction per 100MWh capacity
Standard 20-foot container dimensions ensure compliance with international shipping regulations

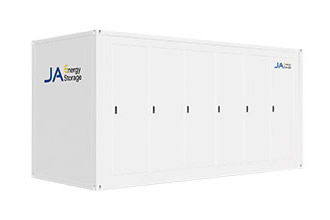

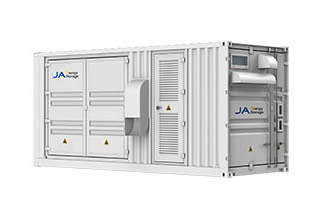

Utility-Scale BESS
Flexible layout configurations with 32% footprint reduction per 100MWh capacity
Standard 20-foot container dimensions ensure compliance with international shipping regulations
PACK-level 1P104S mega-module architecture reduces material costs by 5%
System-level simplification (wiring/piping reduction) lowers failure rates by 3%
Multi-stage fuse protection + compartment-level aerosol/water fire suppression
Supports diverse applications
| ITEM | SPECIFICATIONS |
| Cell capacity | LFP 314Ah |
| System configuration | 12P*416S |
| Voltage range | 1164.8~1497.6Vdc |
| Charge/discharge rate | 0.5P |
| Nominal energy | 5.015MWh |
| Nominal power | 2.508MW |
| Dimensions (WxDxH) | 6058x2438x2896mm |
| Weight | <42.5t |
| Round-trip efficiency | ≥93% |
| Protection level | IP55 (Battery compartment) |
| Cooling method | Intelligent liquid cooling |
| Fire protection system | Aerosol+Water fire suppression |
| Communication | CAN/RS485/Ethernet |
| Operating temp. range | -30°C~50°C (Derated at -45°C) |
| Storage humidity | 0~95% (Non-condensing) |
| Noise | ≤75dBA |
| Max. Operating altitude | 4000m (Derated at 2000m) |
